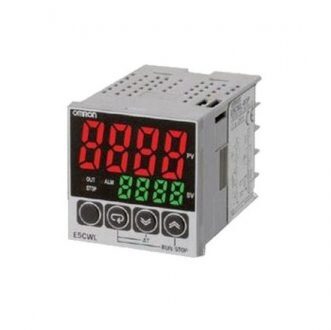

E5CWL-Q1TC
E5CWL: The model series of the temperature controller.
Q1TC: Indicates the specific model within the series, with features tailored for thermocouple inputs.
Choose Quantity
Power Supply: Operates on 100 to 240 VAC, 50/60 Hz.
Sensor Input: Compatible with thermocouples (K, J, T, R, or S) and platinum resistance thermometers (Pt100).
Control Output: Provides relay output (250 VAC, 3 A) and voltage output (12 VDC, 21 mA) for driving SSR (Solid State Relay).
Display: Dual display with character height of 16.2 mm (PV).
Dimensions: Compact size of 48 x 48 x 60 mm (W x H x D).
Sampling Period: Fast sampling at 250 ms.
