BRIDGE RECTIFIER W10
Non-returnable

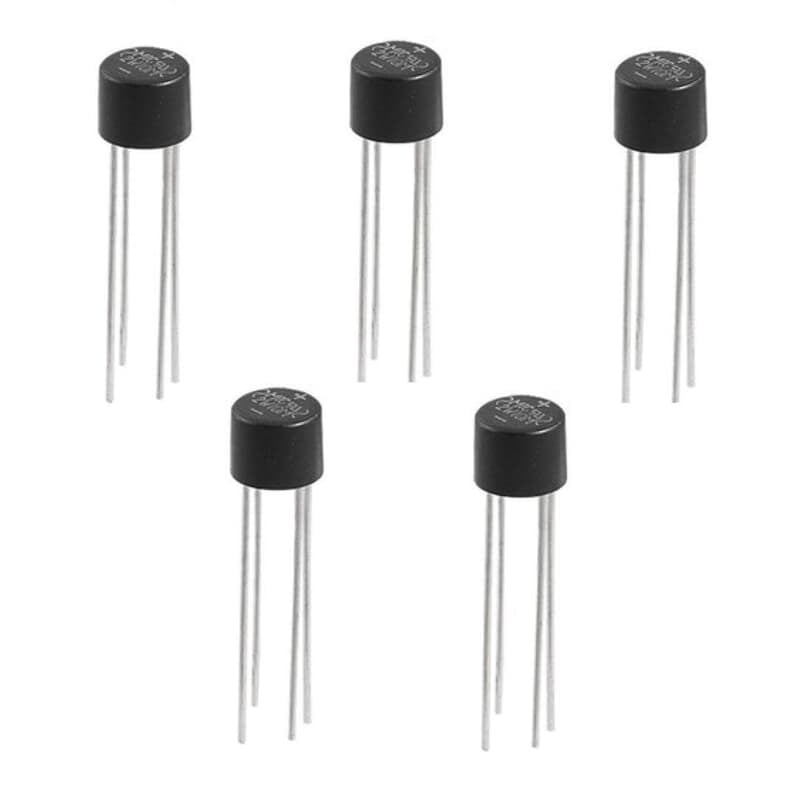

The W10G-E4/51 is a single-phase glass passivated Bridge Rectifier with silver-plated leads and an UL94V-0 flammability-rated molded compound case. It is suitable for printed circuit boards, general purpose use in AC/DC bridge full wave rectification.
₹10.00
Choose Quantity
Product Details
- Maximum Recurrent Peak Reverse Voltage: 1000V
- Maximum RMS Voltage: 700V
- Maximum DC Blocking Voltage: 1000V
- Maximum Average Forward Rectified Current: 1.5A
- Peak Forward Surge Current: 40A
- Low Forward Voltage Drop: 1.0V at 1.5A
- High Temperature Soldering: Guaranteed at 260°C for 10 seconds
- Compact Package: Ideal for printed circuit boards
