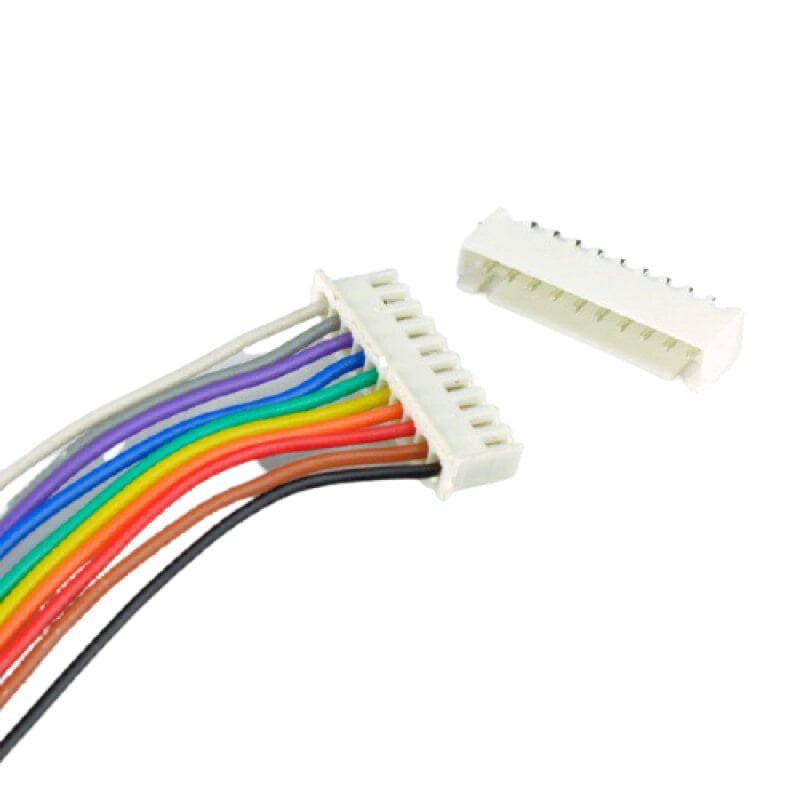

10 PIN RELIMENT CONNECTOR FEMALE
Non-returnable
A 10-pin female Relimate connector is a type of electrical connector used to connect various electronic components.
₹10.00
Choose Quantity
Product Details
Rated Current: Supports up to 2A AC/DC for efficient power delivery.
Voltage Rating: Compatible with voltages up to 250V AC/DC for various applications.
Contact Resistance: Ensures minimal resistance with a maximum of 10mΩ.
Insulation Resistance: Offers excellent insulation with a minimum of 1000MΩ.
Temperature Range: Operates reliably in temperatures ranging from -25°C to +85°C.
Wire Compatibility: Supports AWG #30 to #24 wires, providing versatility in wire selection.
