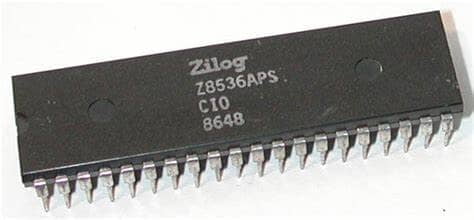

Z8536PS

The Z8536PSF is a versatile Counter/Timer Circuit (CTC) from Zilog. Here are some of its key features:

1. Three Independent 16-bit Counter/Timers: Each counter/timer can be programmed for different modes of operation.
2. Flexible Clocking Options: Supports both internal and external clock sources.
3. Programmable Interrupts: Each counter/timer can generate interrupts, which can be individually enabled or disabled.
4. Counter Modes: Includes modes for event counting, pulse width measurement, and frequency measurement.
5. Timer Modes: Supports modes for delay generation, pulse generation, and square wave generation.
6. Status and Control Registers: Provides detailed status and control through registers, allowing for precise configuration and monitoring.
7. Compatibility: Designed to be compatible with a wide range of microprocessors
