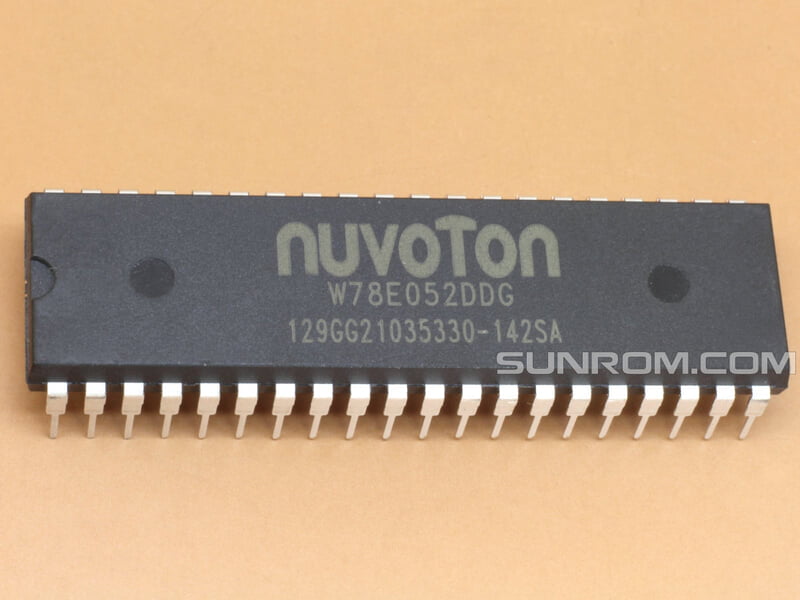

W78E052DDG
Non-returnable
W78E052DDG is a successive microcontroller unit that is fully compatible with the widely popular 8052 despite having an 8051 core. It is an 8-bit architecture based microcontroller unit that has 8 kilobytes of Flash. It has 256 bytes of RAM, 4 8-bit bi-directional I/O ports, specified as P0, P1, P2, P3, and 4-bit I/O port P4.
₹150.00
Choose Quantity
Product Details
Features and Specifications of W78E052DDG Microcontroller
- Core: 8051-based CMOS
- 8052 compatible instruction sets
- Data Bus width: 8bit
- Maximum Clock Frequency: 40 MHz (12T mode, 12 clocks per machine cycle operation), 20 MHz (6T Mode, 6 clocks per machine cycle operation)
- Program Memory size: 8kB
- Data RAM size: 256B
- MCS-51 compatible pin and instruction set.
- Operating supply: 2.4V to 5.5 V
