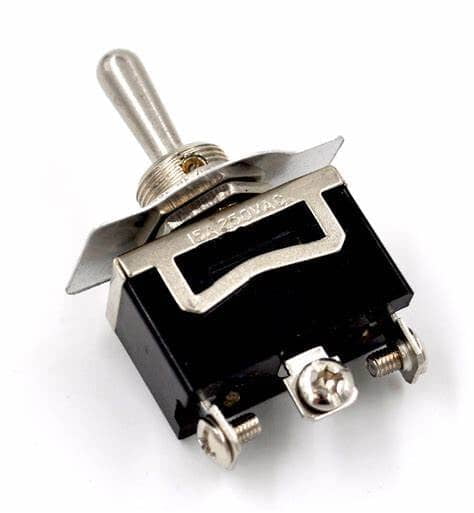

TOGGLE SWITCH SPDT MOM-2
Non-returnable
An SPDT toggle switch, also known as a Single Pole Double Throw switch, is a type of switch with one input and two output channels. It differs from other switches by allowing the user to choose between two different output channels by toggling a lever or button.
₹80.00
Choose Quantity
Product Details
Features and Specifications
- 0.4volt-amps (max.) contact rating at 20v AC or DC (max.)
- Mechanical Life: 30,000 make-and-break cycles.
- 20mΩ (max.) contact resistance
- 100MΩ (min.) of Insulation Resistance
- 100mAfor both silver and gold plated contacts.
- Dielectric strength of 1000VRMS at sea levle
- Operating Temperature: -30°C to 85°C.
