LM2940CT-15
Non-returnable

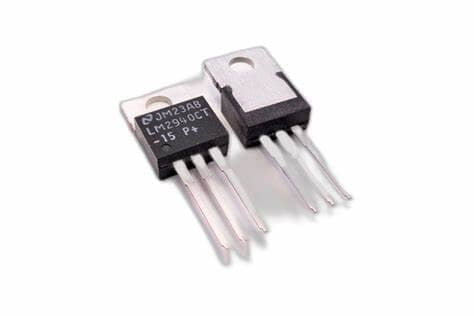

The LM2940CT-15 is a low dropout voltage regulator (LDO) designed to provide a fixed output voltage of 15V with a maximum output current of 1A.
₹60.00
Choose Quantity
Product Details
Output Voltage: Fixed at 15V.
Output Current: Can supply up to 1A.
Low Dropout Voltage: Typically 0.5V at 1A output, which means it can maintain regulation with a small difference between input and output voltages.
Input Voltage Range: Operates from 6V to 26V.
Quiescent Current: 10 mA at full load, indicating low power consumption.
Protection Features: Includes over-current, over-temperature, reverse polarity, and short-circuit protection.
Package: TO-220-3, which is a common package type for power regulators.
