MDS200/16
Non-returnable

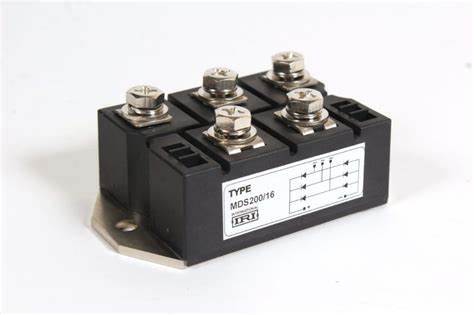

The MDS200/16 is a three-phase diode bridge rectifier designed for high-power applications.
₹3,500.00
Choose Quantity
Product Details
High Voltage Rating: VRRM (Repetitive Peak Reverse Voltage) of 1600V and VRSM (Non-Repetitive Peak Reverse Voltage) of 1700V.
High Current Handling: Capable of handling a direct output current (ID) of 200A.
Surge Current: Can handle a surge peak forward current (IFSM) of 2.50 kA.
Low On-State Losses: Ensures efficient operation with minimal power loss.
Compact Design: Dimensions of 110x50x35 mm and a weight of 300 g.
Applications: Suitable for rectifiers in power supplies, input rectifiers for variable frequency drives, rectifiers for DC motor field supplies, and battery charger rectifiers.
