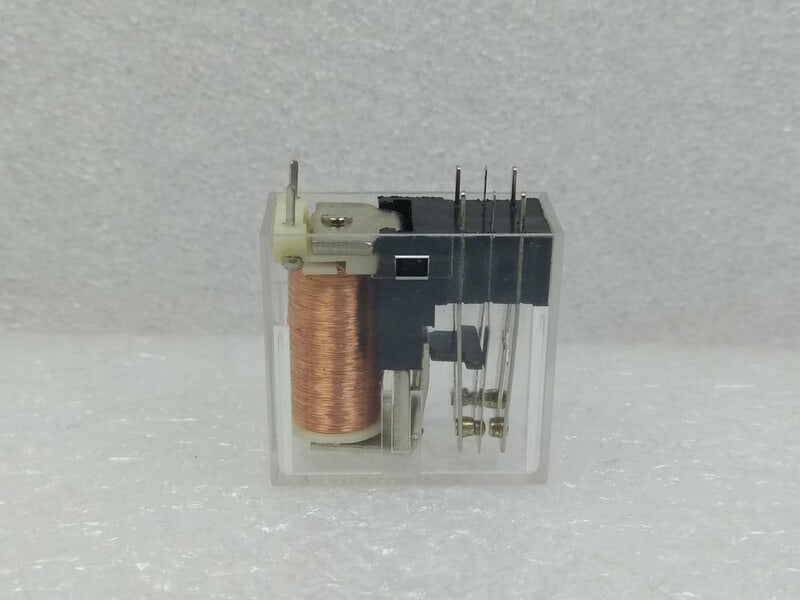

RELAY1
Non-returnable
₹80.00
Out of stock
The code “57DP-12-1C0” refers to a specific type of relay manufactured by O/E/N India Limited. This indicates the series of the relay.This represents the nominal coil voltage, which is 12V in this case.
Product Details
- Contact Arrangement: 1 Form C (SPDT)
- Contact Material: Silver Alloy
- Contact Rating: 6 Amps at 230 VAC/24 VDC
- Coil Voltage: 12V
- Max. Switching Voltage: 250 VAC/110 VDC
- Nominal Coil Power: 0.96 W (approx)
- Electrical Life: 10^5 operations
- Mechanical Life: 10^7 operations
- Dielectric Strength: 750 VRMS between contact and coil
- Insulation Resistance: 1000 MegaOhms at 500VDC
