PANKAJ POT 5K 1W
Non-returnable

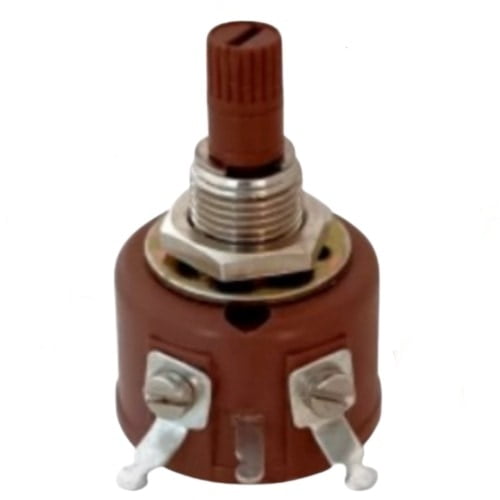

The Pankaj 5K Ohm 1 Watt Wirewound Potentiometer is a single-turn potentiometer designed for precise manual settings. Here are its key specifications:
- Resistance Value: 5K Ohm
- Power Rating: 1 Watt at 40°C
- Shaft Diameter: 6.3mm
- Shaft Length: Typically 19mm or 25mm
- Housing Diameter: 24mm
- Electrical Angle of Rotation: 265° ± 15°
- Maximum Working Voltage: 250VDC
- Insulation Resistance: 200MΩ at 500VDC
- Temperature Range: 0 - 70°C
- Rotational Life Expectancy: 20,000 cycles at 15 RPM
₹80.00
Choose Quantity
Product Details
The Pankaj 5k ohm Single Turn Wire Wound Potentiometer (model RW-1) has several notable features:
- Resistance Range: 25Ω to 25KΩ
- Resistance Tolerance: ±10% standard, ±5% special
- Power Rating: 1 Watt at 40°C
- End Resistance: 0.2Ω or 0.02%, whichever is greater
- Electrical Angle of Rotation: 265° ± 15°
- Maximum Working Voltage: 250VDC
- Insulation Resistance: 200MΩ at 500VDC
- Voltage Proof: 750VAC for 1 minute at sea level
- Temperature Coefficient of Resistance (TCR): 150 ppm/°C
- Rotational Life Expectancy: 20,000 cycles at 15 RPM
