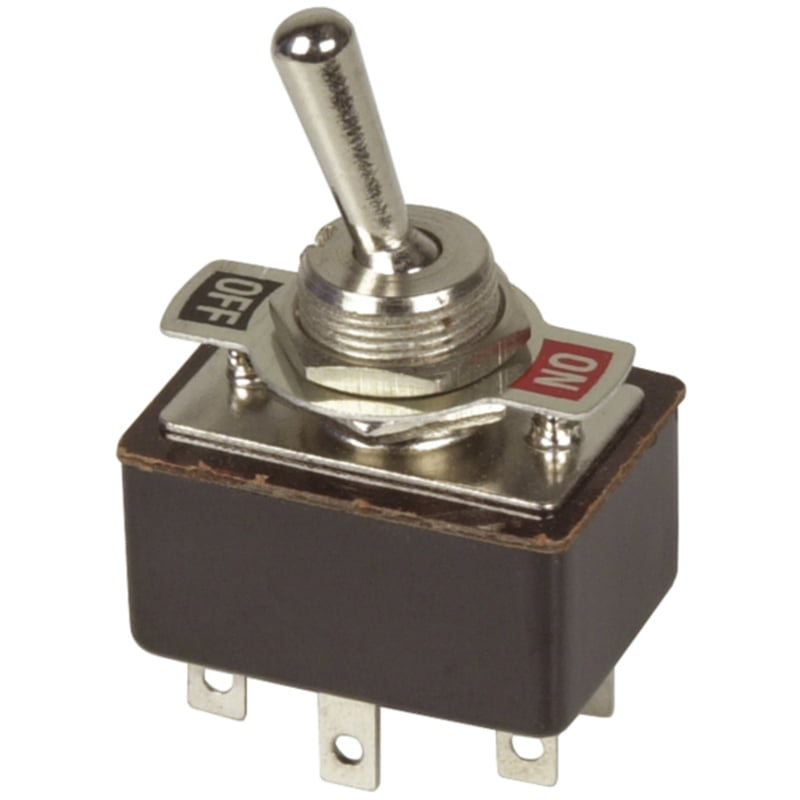

TOGGLE SWTICH DPDT
Non-returnable
A DPDT (Double Pole Double Throw) toggle switch is an electromechanical switch that can control two separate circuits, connecting them to two different outputs. Here are some key points about DPDT switches:
- Structure: It has six terminals - two inputs and four outputs.
- Functionality: Each input can connect to one of two outputs, allowing the switch to redirect a circuit into two different modes of operation.
- Versatility: It can change the polarity of the voltage applied, making it useful for applications requiring different outputs.
₹80.00
Choose Quantity
Product Details
A DPDT (Double Pole Double Throw) toggle switch is quite versatile and robust, making it a popular choice for various applications. Here are some key features:
- Two Poles: It has two separate circuits that can be controlled simultaneously.
- Double Throw: Each pole can connect to one of two terminals, allowing for two different output connections.
- Six Terminals: Typically, it has six terminals - two for input and four for output.
- Three Positions: It usually has three positions - center (off) and two outer positions (on-on or on-off-on configurations).
