M-8 PNP NC JG'
Non-returnable

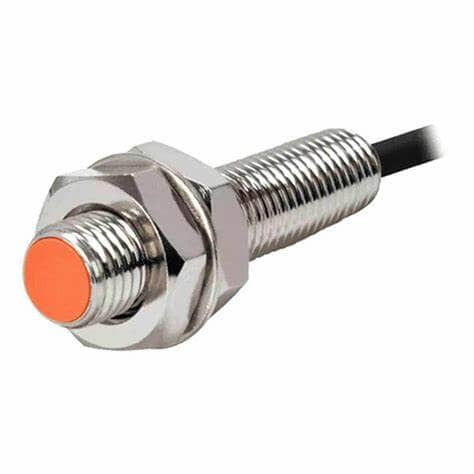

M8 Inductive proximity Switch
( Sense Metal target )
Description:
- Sensor Switch for sense metal target in 1.5 mm sensing range with 2m cable, built in blue and brown & Black three wire for easy connection.
- Features Red LED indicator show status.
Specifications:
| Outer Diameter | 8 mm |
| sensing range | 1.5 mm |
| Operating Voltage | 5-40 VDC |
| Max Load Current | 300mA |
| Output | NPN NC 3 wire |
| Housing length | 45 mm |
| Cable Length (Approx.) | 2 m |
| Mounting | flush |
| Housing | Mettalic Nickel plated |
| Package Content | 1 x M6.5 Cylinder Sensor Switch |
Salient feature
Reverse polarity Proof , short circuit proof , Over Load Current Protection
Note
Above sensor available in 02 meter cable Length . For extra cable length contact us .
M8 Sensor available in different housing length ie. 37 mm, 45 mm, 50 mm, 55 mm etc.
₹350.00
