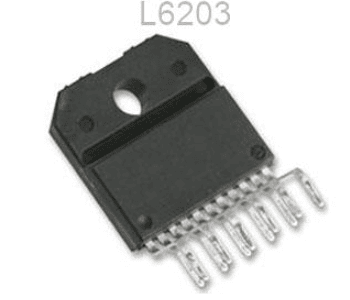

L6203 DIP
Non-returnable
The L6203 is a DMOS full bridge driver from STMicroelectronics, specifically designed to drive DC motors. Commonly used in motor control applications, such as brushed DC motor drivers.
₹400.00
Choose Quantity
Product Details
Supply Voltage: Up to 48V
Peak Current: 5A (2A max. for L6201)
RMS Current: Up to 4A
RDS (ON): 0.3Ω (typical value at 25°C)
Operating Frequency: Up to 100 kHz
Cross Conduction Protection: Built-in protection
TTL Compatible Drive: Compatible with TTL logic inputs
