TL7705 SMD
Non-returnable

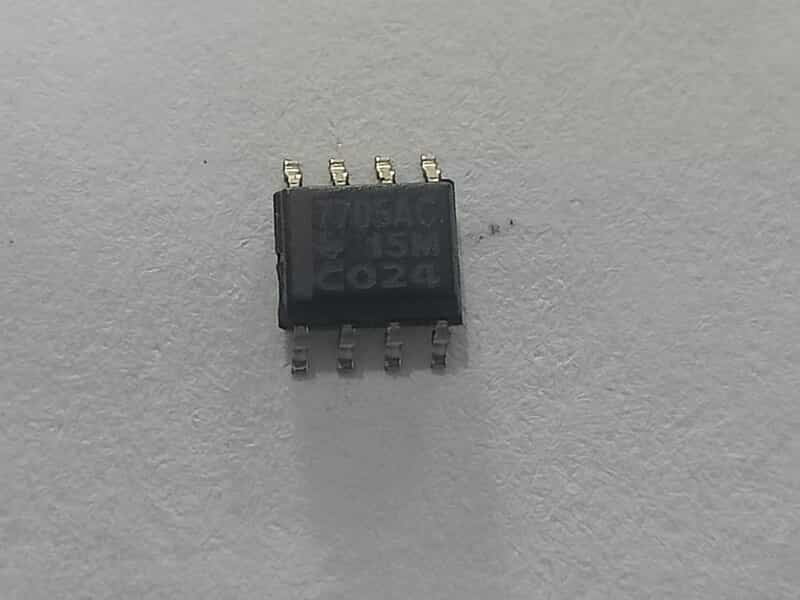

L7705 SMD IC SOIC-8 Monitors & Reset Circuit
Features
- Power-On Reset Generator
- Automatic Reset Generation After Voltage Drop
- Wide Supply-Voltage Range
- Precision Voltage Sensor
- Temperature-Compensated Voltage Reference
- Externally Adjustable Pulse Duration
₹20.00
Choose Quantity
Product Details
Specifications
| Product Attribute | Attribute Value |
| Type: | Voltage Supervisory |
| Mounting Style: | SMD/SMT |
| Package/Case: | SOIC-8 |
| Threshold Voltage: | 4.55 V |
| Number of Inputs Monitored: | 1 Input |
| Output Type: | Active High, Active Low, Open Drain |
| Manual Reset: | No Manual Reset |
| Watchdog Timers: | No Watchdog |
| Battery Backup Switching: | No Backup |
| Reset Delay Time: | Programmable |
| Supply Voltage – Max: | 18 V |
| Minimum Operating Temperature: | 0 C |
| Maximum Operating Temperature: | + 70 C |
| Accuracy: | 2 % |
| Features: | Manual Reset |
| Height: | 1.95 mm |
| Length: | 6.2 mm |
| Operating Supply Current: | 1.8 mA |
| Output Current: | – 16 mA |
| Overvoltage Threshold: | 4.6 V |
| Product Type: | Supervisory Circuits |
| Supply Voltage – Min: | 3.5 V |
| Undervoltage Threshold: | 4.5 V |
Applications
- Computers
- Tablets
- Smart Phones
- Servers
- Music Players
