SERVO MOTOR SG90

Features:

Micro Size: The SG90 is a micro-sized servo, weighing only 9 grams. Its compact form factor makes it suitable for applications where space is limited.

Nylon Gears: The servo motor features nylon gears, which provide a good balance between durability and cost-effectiveness. These gears are suitable for most hobbyist and light-duty applications.

Operating Angle: The SG90 servo has an operating angle of approximately 180 degrees, which means it can rotate between 0 degrees and 180 degrees, providing a wide range of motion.

Torque: The servo is capable of delivering a moderate amount of torque, which varies depending on the voltage supplied but is typically around 1.5 kg/cm at 4.8V. This torque is sufficient for small-scale mechanical movements.

Operating Voltage: The SG90 servo is designed to operate within a voltage range of 4.8V to 6V, making it compatible with common power sources used in RC and electronics projects.

Control Interface: It is a PWM (Pulse Width Modulation) servo, which means it is controlled by sending PWM signals to determine its position. The servo has three wires: power (VCC), ground (GND), and control (signal). You can control it with a microcontroller, Arduino, or other PWM signal sources.

Built-in Potentiometer: The servo contains a potentiometer for feedback, which helps it maintain the desired position accurately.

Fast Response Time: The SG90 servo has a relatively fast response time, making it suitable for applications that require quick and precise movements.

Wide Range of Applications: This servo motor is commonly used in RC airplanes, cars, boats, helicopters, as well as in robotics, animatronics, and various DIY projects.

Affordability: One of the standout features of the SG90 servo is its low cost, which makes it accessible for hobbyists and students.

Brand: Tower Pro
Item Name: SG90
Servo Type: Analogue Servo
Traveling: 180°(max)
Connector Wire Length: 25cm DuPont
Dimension: 23 × 12.2 x 29mm
weight: 9g
Operation Voltage: 3.0-6.0Volts
Stall torque: 1.6kg/cm(4.8v)
Temperature range: -30℃~60℃
Gear Type: All Nylon Gear
Application: For Drone, RC Plane, RC Car, RC Robot, RC Boat, etc

Features:
High quality and high cost performance.
All Nylon Gear.
245mm connector wire.
Large stall torque of 1.6 Kg.
Small size and light weight.
With 3 sets of servo horns and fittings.

Package Included:

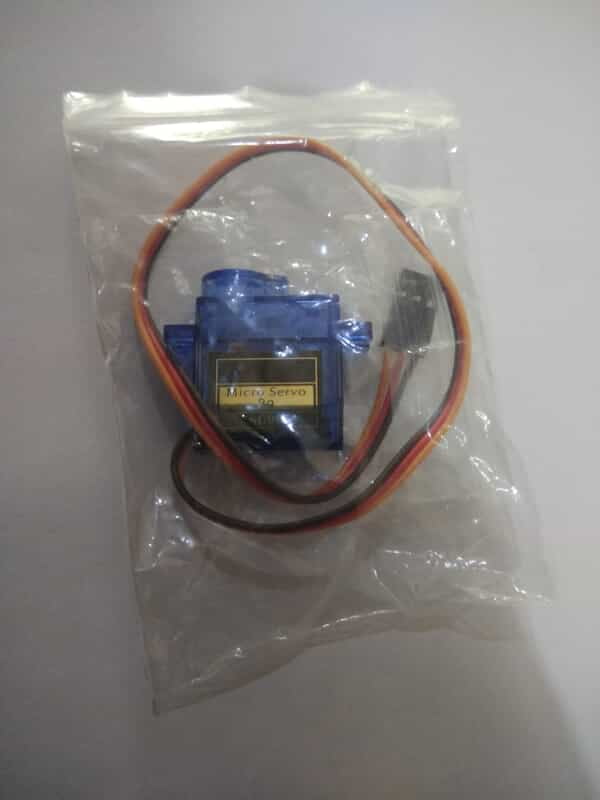

1× 9g Micro SG90 180° Nylon Gear Servo Motor
3× Servo Arm Set
3× Screw
