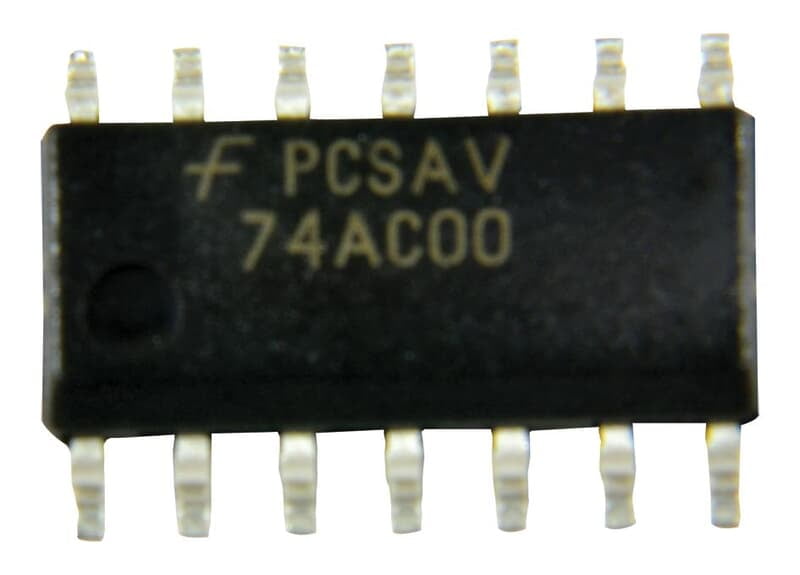

74AC00
Non-returnable
The 74AC00 is an advanced high-speed CMOS QUAD 2-INPUT NAND GATE fabricated with sub-micron silicon gate and double-layer metal wiring C2MOS tecnology. The internal circuit is composed of 3 stages in cluding buffer output, which enables high noise immunity and stable output.
₹25.00
Choose Quantity
Product Details
Features:
- Voltage Range: Operates from 2V to 6V.
- Inputs: Accept voltages up to 6V.
- Speed: Maximum propagation delay of 7ns at 5V.
- Output: Can source or sink 24mA.
- Voltage Range: Operates from 2V to 6V.
- Inputs: Accept voltages up to 6V.
- Speed: Maximum propagation delay of 7ns at 5V.
- Output: Can source or sink 24mA.
Uses:
- Logic Operations: Performs the Boolean function ( Y = A \cdot B ) or ( Y = A + B ) in positive logic.
- Digital Circuits: Commonly used in digital electronics for creating logic gates and performing logical operations.
- Logic Operations: Performs the Boolean function ( Y = A \cdot B ) or ( Y = A + B ) in positive logic.
- Digital Circuits: Commonly used in digital electronics for creating logic gates and performing logical operations.
