5085 4 PIN FEMALE CONN. R/A
Non-returnable

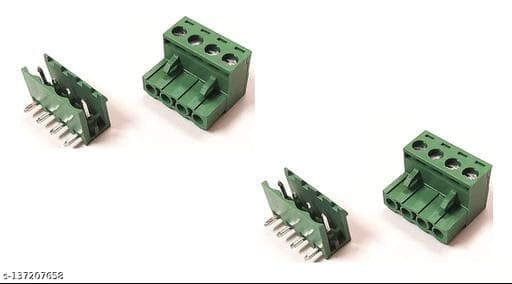

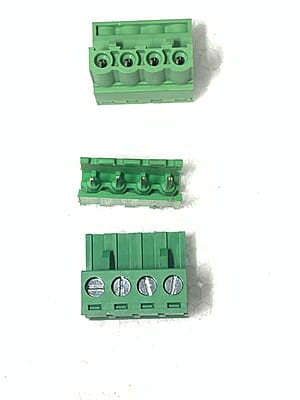

The 5085 4-pin female connector is a type of screw terminal block connector. Typically made of thermoplastic housing with tin-plated copper alloy contacts.
₹20.00
Choose Quantity
Product Details
Pin Count: 4 pins
Pitch: 5.08mm (standard)
Mounting Type: Right angle PCB mount
Maximum Rated Voltage: 300V
Maximum Rated Current: 15A
Wire Gauge: Suitable for 28-12AWG wires
Insulation: 5000MΩ/1000V
Soldering Temperature: +250°C for 5 seconds
