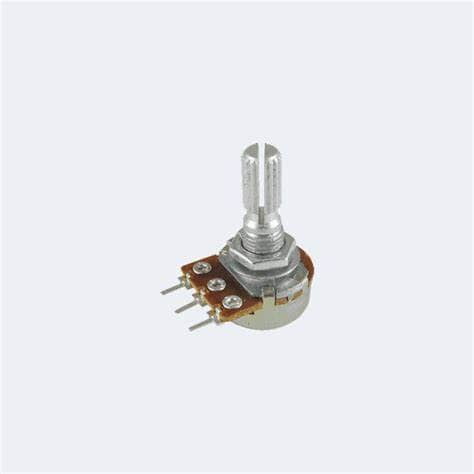

PANKAJ POT 100K 3W POTEL

The PANKAJ POT 100K 3W POTEL is a wire-wound potentiometer designed for panel mounting and manual resistance adjustment in industrial and electronic applications.

1. Resistance Value: 100K Ohms

2. Power Rating: 3 Watts @ 40°C

3. Resistance Tolerance: ±10% (standard), ±5% or ±2% available on request

4. Maximum Working Voltage: 250 VDC

5. Temperature Coefficient: ≤130 ppm/°C

6. End Resistance: 2Ω or 0.1% (whichever is greater)

7. Insulation Resistance: ≥200 MΩ @ 500 VDC
