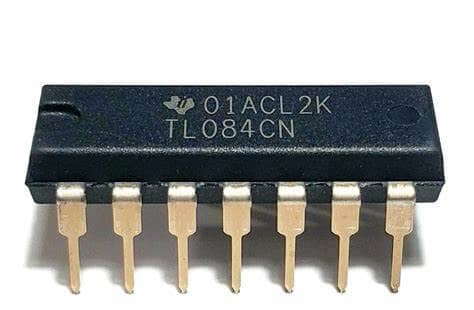

TL084
Non-returnable
₹25.00
Out of stock
The TL084 is a type of operational amplifier (op-amp) integrated circuit. Here are some key features:
- JFET Input: It has a JFET (Junction Field-Effect Transistor) input stage, which provides high input impedance and low input bias currents.
- Quad Package: It contains four independent op-amps in a single IC package.
- High Slew Rate: It has a slew rate of 13 V/µs, which means it can handle rapid changes in the input signal.
- Low Noise: It is designed to have low noise and harmonic distortion, making it suitable for audio applications.
- High Input Impedance: This feature ensures that the op-amp does not load down the signal source.
Product Details
TL084 Features
- Common mode rejection ratio (CMRR) = 86dB
- Typical operating voltage range = +18V to -18V
- Available in SO-14, 14-pin PDIP, TSSOP packages
- Gain = 200 V/mV
- Used for output short circuit protection
- Carries bandwidth = 4MHz
