60T65 MEGNACHIP
Non-returnable

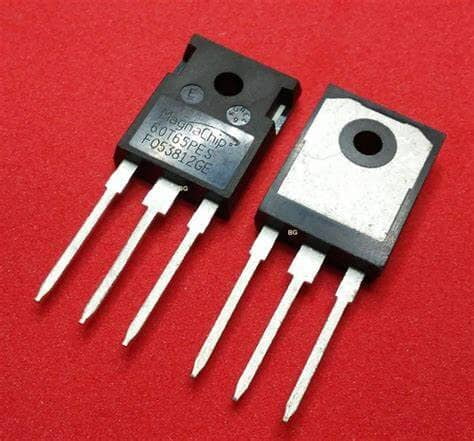

The 60T65 from Magnachip refers to the MBQ60T65PES, a high-speed Fieldstop Trench IGBT (Insulated Gate Bipolar Transistor) of the second generation.
- Collector-Emitter Voltage (V<sub>CE</sub>): 650V
- Collector Current (I<sub>C</sub>): 60A at 100°C
- Collector-Emitter Saturation Voltage (V<sub>CE(sat)</sub>): 1.85V at 25°C
- Maximum Junction Temperature: 175°C
- Package: TO-247
₹220.00
Choose Quantity
Product Details
- High Speed Switching & Low Power Loss:
- Collector-emitter saturation voltage (VCE(sat)) = 1.85V @ IC = 60A
- Turn-off energy (Eoff) = 0.53mJ @ TC = 25°C
- High Input Impedance:
- Reverse recovery time (trr) = 110ns (typ.) @ diF/dt = 500A/μs
- Maximum Junction Temperature: 175°C
- Applications: Suitable for PFC (Power Factor Correction), welders, UPS (Uninterruptible Power Supplies), IH (Induction Heating) cookers, and PV (Photovoltaic) inverters.
