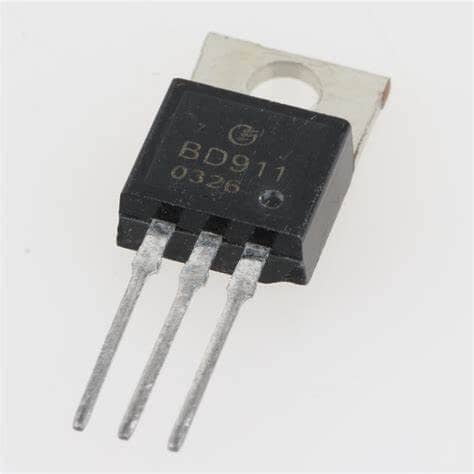

BD911
Non-returnable
The BD911 is a silicon Epitaxial-Base NPN power transistor, typically used in power linear and switching applications. Here’s a brief overview of how it works:
- Structure: The BD911 is housed in a TO-220 plastic package and is designed to handle high power levels.
- Operation: As an NPN transistor, it has three terminals: the collector, the emitter, and the base. When a small current flows into the base, it allows a larger current to flow from the collector to the emitter.
₹20.00
Choose Quantity
Product Details
BD911 Key Features
- DC Current Gain – : hFE = 40@ IC=" 0.5A
- Collector-Emitter Sustaining Voltage- : VCEO (SUS)= 100V (Min)
- Minimum Lot-to-Lot variations for robust device performance and reliable operation
- Type Designator: BD911
- Material of Transistor: Si
- Polarity: NPN
- Maximum Emitter-Base Voltage |Veb|: 5 V
