2N3019
Non-returnable

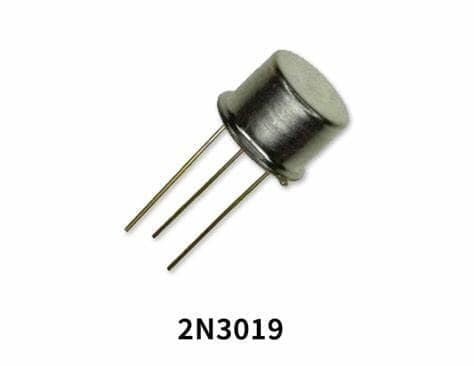

The 2N3019 is a silicon Planar Epitaxial NPN transistor in jedec TO-39 metal case, designed for high-current, high frequency amplifier application. It feature high gain and low saturation voltage.this transistor is designed for general purpose switching and amplification purposes and also has similar specs as the 2N2219, 2N2222 or other similar general purpose transistors except the collector to emitter voltage so if you are looking for a high voltage alternative for 2N2219 or 2N2222 metal case transistors then you can use 2N3019.
₹20.00
Choose Quantity
Product Details
The 2N3019 is an NPN small signal transistor with several notable features:
Maximum Ratings:
- Collector-Emitter Voltage (VCEO): 80V
- Collector-Base Voltage (VCBO): 140V
- Emitter-Base Voltage (VEBO): 7V
Electrical Characteristics:
- DC Current Gain (hFE): 15 to 300
- Collector-Emitter Saturation Voltage (VCE(sat)): 0.2V to 0.5V
- Base-Emitter Saturation Voltage (VBE(sat)): 1.1V
