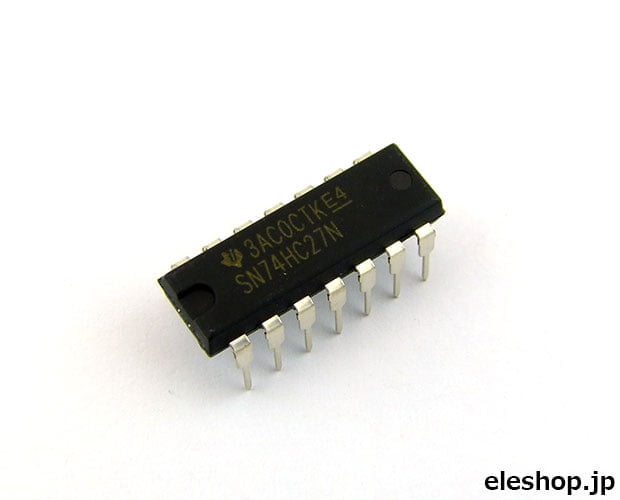

74HC27
Non-returnable
₹30.00
Triple 3-input NOR gate
The 74HC27-Q100; 74HCT27-Q100 is a triple 3-input NOR gate. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of V CC
This product has been qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 1) and is suitable for use in automotive applications
Choose Quantity
Product Details
1.Automotive product qualification in accordance with AEC-Q100 (Grade 1)Specified from 40C to +85C and from 40C to +125C Complies with JEDEC standard JESD7A
Input levels:
For 74HC27-Q100: CMOS level
For 74HCT27-Q100: TTL level
ESD protection:
MIL-STD-883, method 3015 exceeds 2000 V
HBM JESD22-A114F exceeds 2 000 V
MM JESD22-A115-A exceeds 200 V (C = 200 pF, R = 0)
