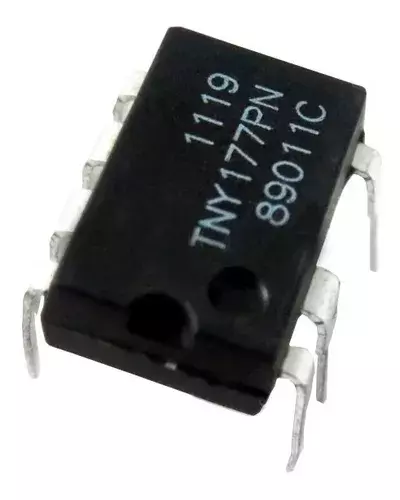

TNY177PN
Non-returnable
TinySwitch-LT incorporates a 650 V power MOSFET, oscillator, high voltage switched current source, current limit (user selectable) and thermal shutdown circuitry. The IC family uses an ON/OFF control scheme and offers a design flexible solution with a low system cost and extended power capability.
₹90.00
Choose Quantity
Product Details
Lowest System Cost with Enhanced Flexibility
• 650 V rating optimized for non-active PFC applications
• Simple ON/OFF control, no loop compensation needed
• Selectable current limit through BP/M capacitor value - Higher current limit extends peak power or, in open frame applications, maximum continuous power
- Lower current limit improves efficiency in enclosedadapters/chargers
- Allows optimumTinySwitch-LT choice by swapping devices with no other circuit redesign
• Tight I2f parameter tolerance reduces system cost
- Maximizes MOSFET and magnetics power delivery
- Minimizes max overload power, reducing cost of
transformer, primary clamp & secondary components
• ON-time extension – extends low line regulation range/hold-up time to reduce input bulk capacitance
• Self-biased: no bias winding or bias components
• Frequency jittering reduces EMI filter costs
• Pin-out simplifies heatsinking to the PCB
• SOURCE pins are electrically quiet for low EMI
