TLP521-1-4PIN-DIP TOSHIBA
Non-returnable

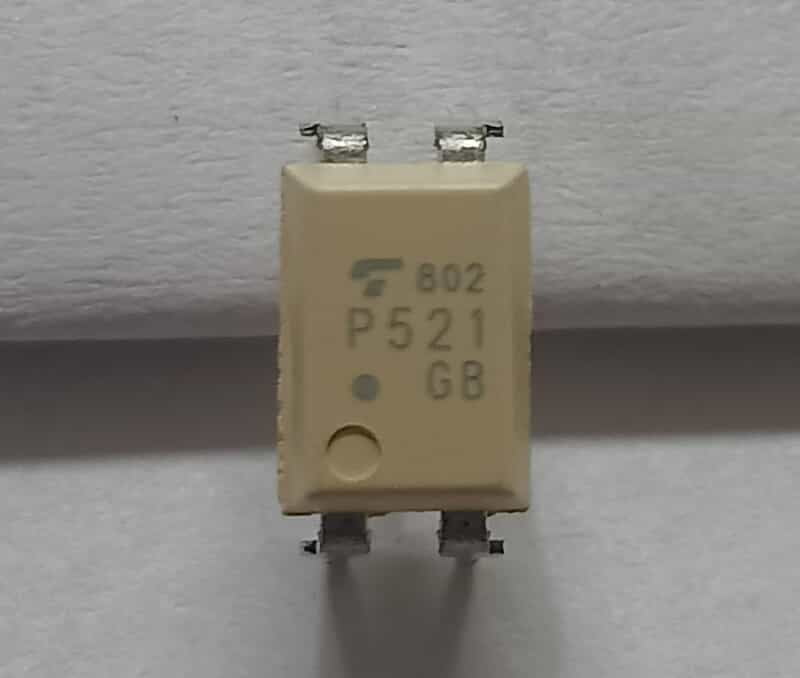

TLP521 Series Optocoupler with GaAs IR-LED & Photo-Transistor
The Toshiba TLP521-1 consists of a photo-transistor optically coupled to a gallium arsenide infrared emitter diode. This device can be used for applications where galvanic isolation is necessary, like Switch Mode Power Supply, relay driver board, etc.
₹20.00
Choose Quantity
Product Details
Features & Specifications
- Input Diode Forward Voltage: 1.25V
- Reverse Voltage 5V
- Emitter-Collector Voltage 7V
- Isolated Voltage 2500 Vrms
- Collector-Emitter Voltage: 55V (max)
- Collector Current: 50mA (max)
- Cut-off frequency: 80 kHz
- Rise Time: 2us
- Fall Time: 3us
- Junction Temperature 125 C
- Total device Dissipation 150mW
- Available in 4-pin, 8-pin, and 16-pin DIP through hole package.
