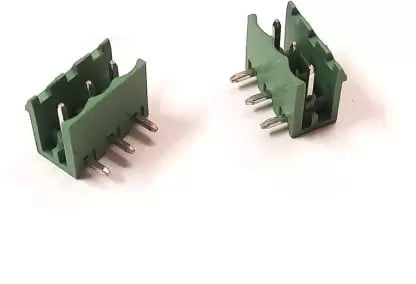

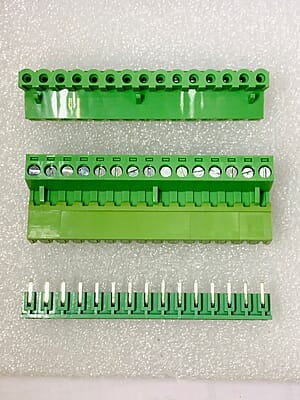

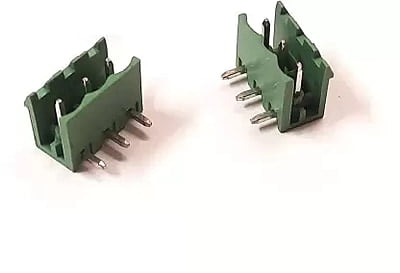

5085 15 PIN MALE CONNECTORS R/A
Non-returnable
The term “5085 15 pin male connectors r/a” refers to a specific type of connector with the following characteristics:
- 5085: This is likely a part or series number used by the manufacturer to identify the specific connector.
- 15 pin: The connector has 15 pins, which are used to establish electrical connections.
- Male: This indicates that the connector has pins (protruding parts) that fit into a female connector (which has corresponding holes).
₹75.00
Choose Quantity
Product Details
- Current Rating: 2.5A for signal and 30A for power.
- Voltage Range: 12V for signal and 48V for power.
- Withstand Voltage: 1000V for signal and 2500V for power.
- Contact Resistance: 20 mΩ for signal and 0.5 mΩ for power.
- Insulation Resistance: 5000 MΩ for signal and 20000 MΩ for power.
- Temperature Range: -20°C to 105°C.
- Material: High HDT Nylon 94V-0 for the base, with brass pins that are selectively gold-plated.
