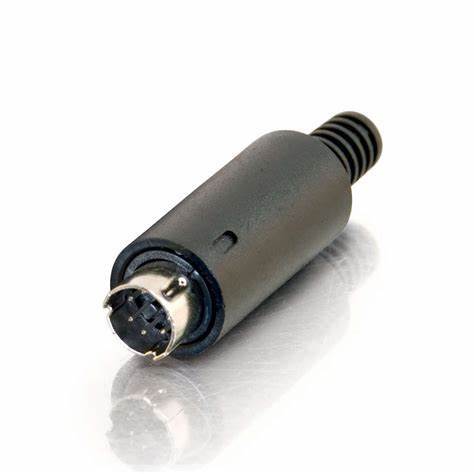

6 PIN MINI DIN MALE/CONNECTOR
Definition: It is a connector with 6 pins arranged in a circular pattern.
Uses: It is often used for connecting devices such as older computer keyboards and mice (like PS/2 ports), as well as video equipment (like SVHS for video signals).
Structure: The connector's design helps in transmitting signals by separating video information into chrominance (color) and luminance (brightness).
Choose Quantity
Pin Configuration: It has six pins arranged in a circular pattern. Each pin carries a specific signal.
Versatile Usage: Commonly used in older PS/2 ports for keyboards and mice, SVHS video cables, and certain multimedia devices.
Compact Design: Mini DIN connectors are smaller compared to regular DIN connectors, making them suitable for compact devices.
Durable Construction: Usually made of metal and plastic for durability and reliable connections.
Signal Division: Capable of separating video signals into chrominance (color) and luminance (brightness) for improved video quality.
