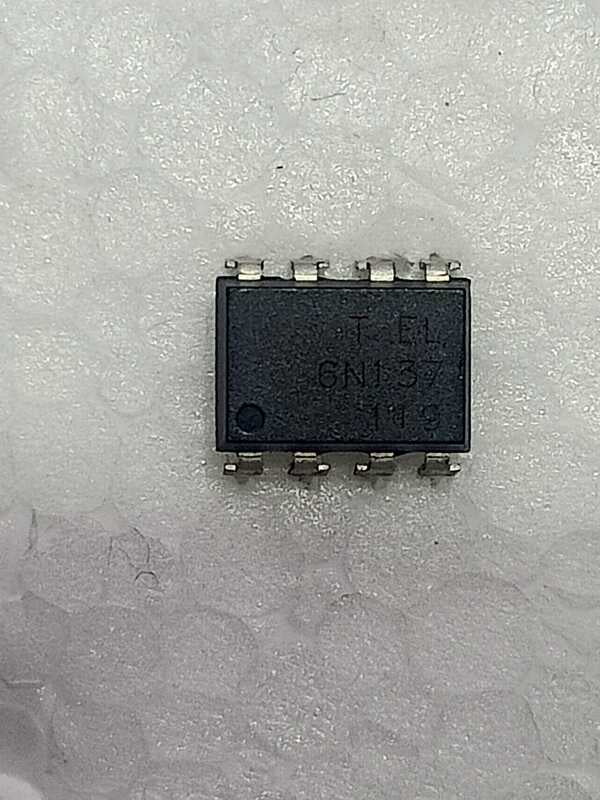

6N137 DIP
Non-returnable
Photocoupler 6N137-L series
The 6N137-L consists of a high efficient AlGaAs Light Emitting Diode and a high speed optical detector. This design provides excellent AC and DC isolation between the input and output sides of the Optocoupler. The output of the optical detector features an open collector Schottky clamped transistor. The enable function allows the optical detector to be strobed. A guaranteed common mode transient immunity is up to 10kV/μs at 3.3V. The Optocoupler operational parameters are guaranteed over the temperature range from -40oC ~ +85oC.
₹25.00
Choose Quantity
Product Details
1 Features
3.3V / 5V Dual Supply Voltages
Low power consumption
High speed – 15MBd typical
10kV/μs minimum Common Mode Rejection (CMR) at VCM = 1000V
Guaranteed AC and DC performance over temperature -40oC ~ +85oC.
LVTTL/LVCMOS Compatible.
Available in Dual-in-line, Wide lead spacing, Surface mounting package.
Strobable output.
Safety approval UL/ cUL 1577, 5000 Vrms/1 min VDE DIN EN60747-5-5, VIORM = 630 Vpeak 1.2 Applications
Isolation in line receivers
Digital isolation for A/D, D/A conversion
Ground loop elimination
Feedback Element in Switching Mode Power Supplier
Pulse transformer replacement
Power transistor isolation in motor drives
Interface between Microprocessor system, computer and their peripheral
