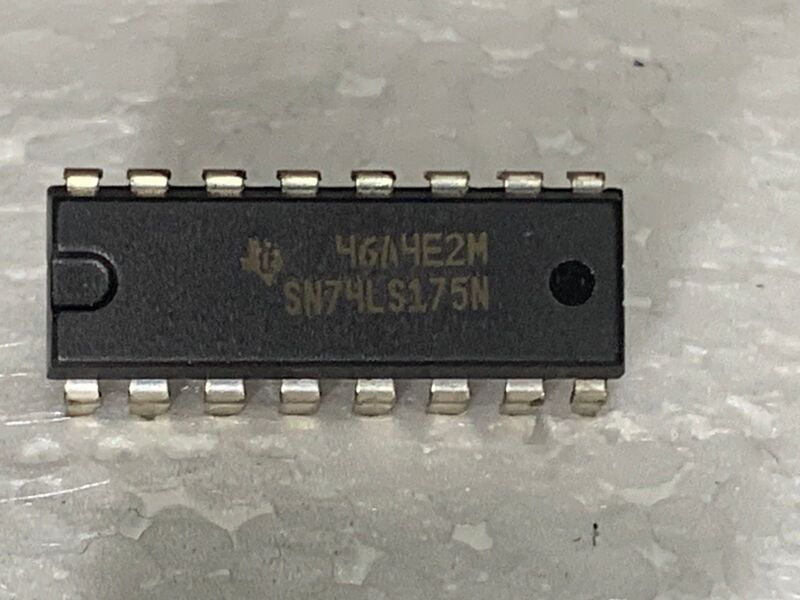

74LS175N
Non-returnable
QUAD D FLIP-FLOP LOW POWER SCHOTTKY
The LSTTL / MSI SN54 /74LS175 is a high speed Quad D Flip-Flop. The device is useful for general flip-flop requirements where clock and clear inputs are common. The information on the D inputs is stored during the LOW to HIGH clock transition. Both true and complemented outputs of each flip-flop are provided. A Master Reset input resets all flip-flops, independent of the Clock or D inputs, when LOW.
₹30.00
Choose Quantity
Product Details
•Edge-Triggered D-Type Inputs
•Buffered-Positive Edge-Triggered Clock
•Clock to Output Delays of 30 ns
•Asynchronous Common Reset
•True and Complement Output
•Input Clamp Diodes Limit High Speed Termination Effects
