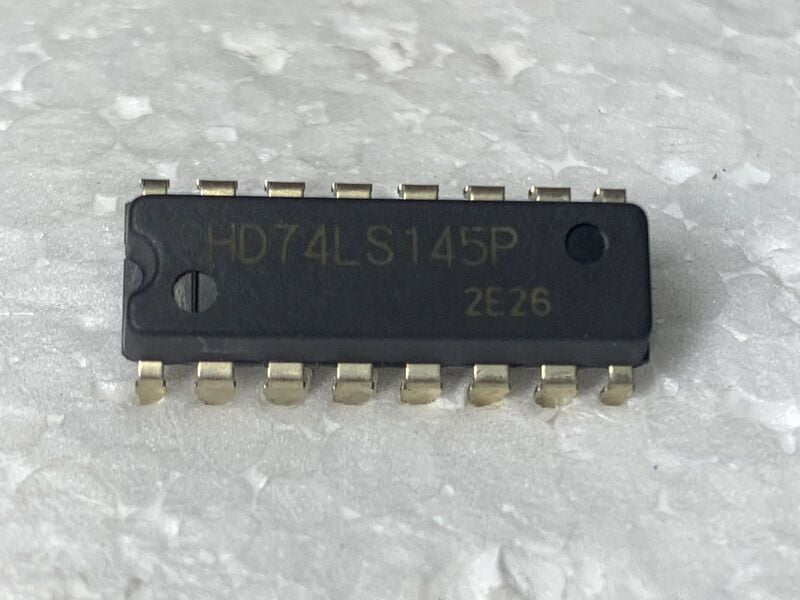

1-OF-10 DECODER/DRIVER OPEN-COLLECTOR
The SN54 / 74LS145, 1-of-10 Decoder/Driver, is designed to accept BCD inputs and provide appropriate outputs to drive 10-digit incandescent displays.
All outputs remain of f for all invalid binary input conditions. It is designed for use as indicator/relay
drivers or as an open-collector logic circuit driver.
Each of the high breakdown output transistors will sink up to 80 mA of current. Typical power dissipation is 35 mW
This device is fully compatible with all TTL families.
•Low Power Version of 54 / 74145
•Input Clamp Diodes Limit High Speed Termination Effects
