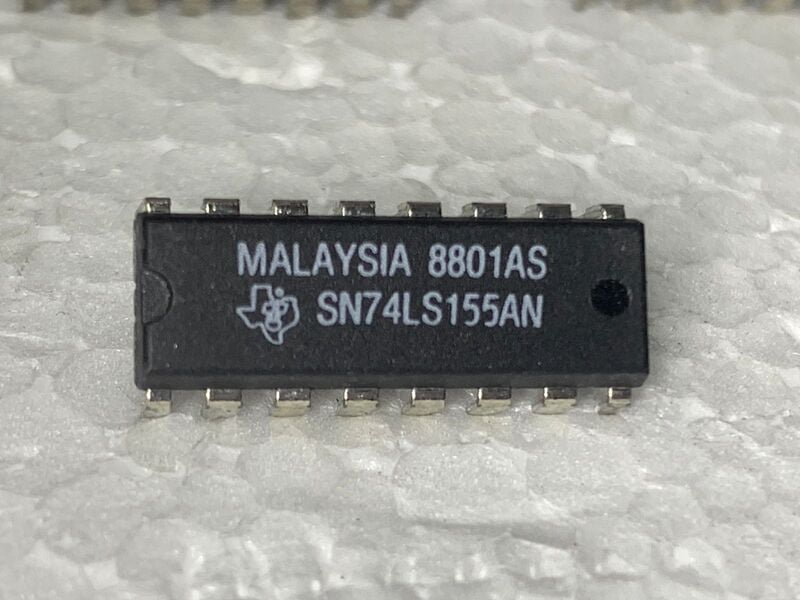

74LS155N
Non-returnable
DUAL 1-OF-4 DECODER/DEMULTIPLEXER
The SN54/ 74LS155 and SN54/ 74LS156 are high speed Dual 1-of-4Decoder/Demultiplexers.
These devices have two decoders with common 2-bit Address inputs and separate gated Enable inputs. Decoder “a” has an Enable gate with one active HIGH and one active LOW input. Decoder “b” has
two active LOW Enable inputs. If the Enable functions are satisfied, one output of each decoder will be LOW as selected by the address inputs. The LS156 has open collector outputs for wired-OR (DOT -AND) decoding and
function generator applications
₹30.00
Choose Quantity
Product Details
•Schottky Process for High Speed
•Multifunction Capability
•Common Address Inputs
•True or Complement Data Demultiplexing
•Input Clamp Diodes Limit High Speed Termination Effects
•ESD > 3500 Volts
